Product at a glance

Z-Wave Plus™ certified

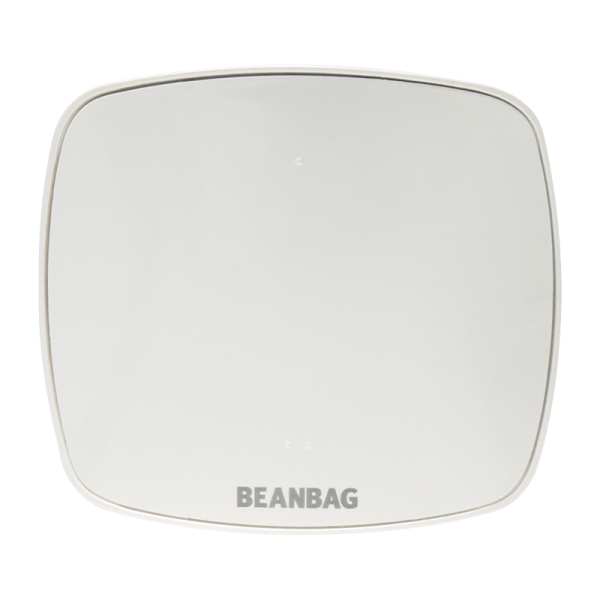

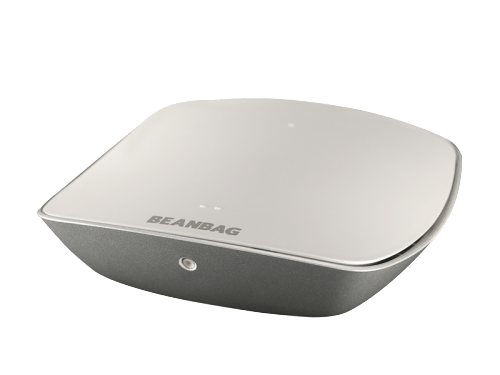

The Receiver is a member of the stylish and intelligent Beanbag family of home heating control products, designed to ensure your comfort at all times, while minimising energy consumption. Beanbag products can be used together in many different ways, and can be integrated with other home control equipment to suit a wide range of heating systems. The Receiver is the ideal partner for the Thermostat and Gateway, all working together through interoperable low-power radio communications. A smartphone app enables you to read the temperature, receive alarms and adjust the set point from anywhere with an Internet connection. You no longer have to worry about returning to a cold house. The Receiver is a two-channel unit and is ideal for replacing traditional wired controls for systems that require separate control of heating and hot water. It comes with its own wall plate, and includes TPI software that significantly improves boiler efficiency by preventing short-cycling and overshooting of temperature in the heated environment. TPI controllers have been shown to save energy compared to traditional systems, while maintaining more consistent comfort levels.

Application

  • Replacement of wired controls
  • Control of heating and hot water as part of a Beanbag smart home system
  • Domestic gas or oil-fired central heating and hot water systems
  • Boiler and hot water control

Features

  • Stylish design, coordinating with other Beanbag home heating control devices
  • Z-wave Plus™ certified, fully interoperable relay switch
  • Load compensation  software for efficiency and reliable comfort
  • Mains powered, 3A rated
  • Switched-live or switched-circuit operation
  • 2 channels with local override

Specification

Electrical
Number of channels 2
Relay input voltage rating (CH1 and CH2) 12 V to 30 V DC, or 230/240 V AC (50 Hz)
Relay input/output current rating 3A resistive /1A reactive
Supply 230 V/240 V AC (50Hz)
Insulation category CAT II
Software class Class A
Control type Micro-interruption
Compliance
Design standards Product standard: EN 60703-1, EN 60730-2-7
R&TTE : Radio: ETSI EN 300 220-1, ETSI EN 300 220-2
EMC: ETSI EN 301 489-1, ETSI EN 301 489-3
Mechanical
Dimensions 125 mm x 112 mm x 35 mm
Weight 161 g (approx.)
Case material Thermoplastic, flame retardant
Mounting Wall plate, with optional fascia plate (supplied)
Mounting mechanism Push ON, pull OFF
Cable access Centre or top/bottom/left/right, using surface wire plate
