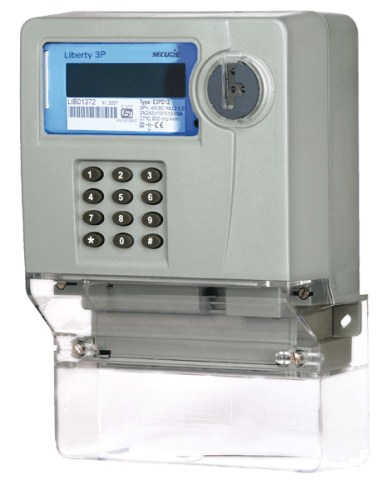

Specification
Electrical | |
Connection type | Direct connected |
Wiring configuration | 3-phase 4-wire |
Voltage range | 240 V (L-N), – 20% to +15% |
Current range | 10-60 A, 20-100 A* |
Accuracy | Class 1.0 |
Mains Frequency | 50 Hz ± 5% |
Burden | As per relevant standards |
Compliance | |
Standards | IS 13779, IEC 62055-31, IEC 62053-21 |
Mechanical | |
Dimensions (W x H x D) | 175 x 264 x 96 mm (with extended terminal cover) |
Enclosure | Engineering plastic |
Environmental | |
Ingress protection | IP 51 |
Temperature | -10°C to +60°C (operating) -25°C to +70°C (storage) |
Humidity | 95% non-condensing |
