Position indicators

Product at a glance

Simulation working state indicators

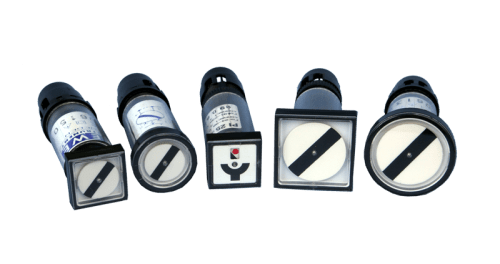

Our range of position indicators is designed for use in indicator panels and mimic panels. Position indicators for electrical circuit breakers and isolators are available with indicator discs in 'bar', 'angle' and 'disconnector' designs. Indicator discs for valves are available in 'amber-white' and 'red-green' formats. A moving-magnet system is used, ensuring high precision of movement of the indicator disc while keeping the power consumption low.
Get in touch

Application

  • Distribution panels in power plants, substations and plant rooms
  • Mimic panels for electrical systems, chemical and water industries
  • Industrial plant rooms for commerce, institutions and industry

Benefits

  • High accuracy and reliability through use of moving-magnet system
  • Low power consumption
  • No need for external setting of 'zero' position
  • Easy to fit, using sleeve and nut

Features

  • Available in AC and DC variants
  • 'Bar', 'angle' and 'disconnector' formats for circuit breakers and isolators
  • 'Amber-white' and 'red-green' formats for valves
  • Screw terminals for cables up to 1.5 mm²
  • Available in a range of sizes: 24x24, 25x25, 36x36, Ø 29 and Ø 39 mm
  • Provided with protection cover
  • Polycarbonate enclosure (IP 54 rated)
  • Wide operating voltage range 24-230 VDC
  • Suitable for panel thickness up to 12 mm
  • Standards compliance
    • Personal safety EN 61010:1
    • Double isolated to category III, Table D12
    • IEC 51, EN 50081-1, EN 50081-2, EN50082-1, EN50082-1, IEC 473

Useful links

Specification

For DC auxiliary voltage
Type PI 24 PI 25 PI 29 PI 36 PI 39
Front flange mm 24 x 24 25 x 25 ø 29 36 x 36 ø 39
Housing ø mm 21.8 21.8 21.8 21.8 21.8
Voltage V (DC) 24 – 230 24 – 230 24 – 230 24 – 230 24 – 230
Test voltage kV 3.7 3.7 3.7 3.7 3.7
Power consumption W 0.4/1.4 0.4/1.4 0.4/1.4 0.4/1.4 0.4/1.4
Weight kg (approx.) 0.1 0.1 0.12 0.15 0.15
For AC auxiliary voltage
Type PI 24 PI 25 PI 29 PI 36 PI 39
Front flange mm 24 x 24 25 x 25 ø 29 36 x 36 ø 39
Housing ø mm 21.8 21.8 21.8 21.8 21.8
Voltage V (DC) 24 – 230 24 – 230 24 – 230 24 – 230 24 – 230
Test voltage kV 3.7 3.7 3.7 3.7 3.7
Power consumption W 0.4/1.4 0.4/1.4 0.4/1.4 0.4/1.4 0.4/1.4
Weight kg (approx.) 0.1 0.1 0.12 0.15 0.15
