Analogue Panel Instruments

Product at a glance

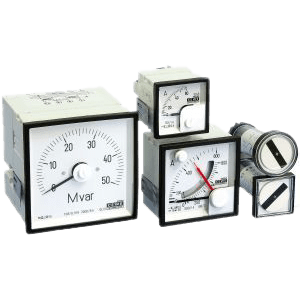

We offer a comprehensive range of analogue and panel instruments for use in control and instrumentation systems. The range includes moving-iron and moving-coil mechanisms in a variety of formats, scales and sizes. All our panel meters are robust, accurate and constructed from high-quality materials to give a long service life. Ammeters, voltmeters and power meters are available with a large range of scales and can be further customised for special applications.
Get in touch

Application

  • HV and LV switchgear panels
  • Control and relay panels
  • Power control centre (PCC) panels
  • Motor control centre (MCC) panels
  • Test benches
  • Laboratory equipment

Benefits

  • Easy to install, with snap-in mounting
  • Well proven instrument designs for high quality and reliability
  • Complete product range for a wide range of applications
  • Low power consumption
  • No need for additional magnetic shielding

Features

  • Range of standard front panel sizes: 48x48, 72x72 and 96x96 mm
  • Range of scales: quadrant (90°), circular (240°) and edgewise
  • Options for different mounting positions: horizontal, vertical or angled
  • Optional protective coatings and materials for use in tropical environments
  • Ingress protection rating IP 54 across the range (option for IP 65)
  • Wide temperature range: -25 °C to +50 °C
  • Adjustable red markers for meters with quadrant scales
  • Models available for AC or DC measurement
  • Measured parameters:
  • CurrentŸVoltage
  • Frequency
  • Power (active or reactive)
  • Power factor
  • Maximum demand (current)
  • Synchronisation (pointer synchroscope, twin voltmeter or twin frequency meter)

Useful links

Specification

Moving Iron Instruments: AC Ammeters and Voltmeters
Scale type Quadrant (90°)
Front panel size 48×48, 72×72 or 96×96 mm
Linearity From 20% to 100% of full range
Frequency 50 to 60 Hz (default)
Measuring ranges 13 models cover 250 mA to 60 A (plus 1 A or 5 A via current transformer)
13 models cover 6 V to 800 V (plus 100 V or 110 V via voltage transformer)
Overload capability 1.2x Un continuously, 2x Un for 5 s, 2x In continuously, 10x In for 10 s
CT-operated ammeter: 50x In for 1 s
Moving Coil Instruments: DC Ammeters and Voltmeters
Scale type Quadrant (90°), circular (240°) or edgewise (70°)
Front panel size 48×48, 72×72 or 96×96 mm (quadrant or circular scale)
48×24, 72×24 or 96×48 mm (edgewise scale)
Linearity Full range
Frequency 50 to 60 Hz (default)
Measuring ranges
Quadrant scale 30 models cover 100 μA to 25 A | 22 models cover 60 mV to 600 V
Circular scale 26 models cover 600 mA to 25 A | 22 models cover 60 mV to 600 V
Edgewise scale 23 models cover 100 μA to 1 A | 16 models cover 1 V to 600 V
Overload capability 1.2x Un continuously, 2x Un for 5 s, 2x In continuously, 10x In for 10 s
Moving Coil Instruments: AC Ammeters and Voltmeters
Scale type Quadrant (90°), circular (240°) or edgewise (70°)
Front panel size 48×48, 72×72 or 96×96 mm (quadrant or circular scale)
Linearity Full range
Frequency 50 to 60 Hz (default)
Measuring ranges
Quadrant scale 18 models cover 400 mA to 1 A (plus 1 A or 5 A via current transformer)
12 models cover 6 V to 600 V (plus 110 V via voltage transformer)
Circular scale 16 models cover 1 mA to 1 A (plus 1 A or 5 A via current transformer)
12 models cover 6 V to 600 V (plus 110 V via voltage transformer)
Overload capability 1.2x Un continuously, 2x Un for 5 s, 2x In continuously, 10 In for 10 s
For more details click here.
