Specification
| Electrical | |
| Voltage drop | 60 mV ± 0,5 % shunts with voltage drops 75, 100, 120, 150 and 300 mV are available as options. |
| Mechanical | |
| Material | Manganin resistance rods, copper bars. |
| Surface treatment | Nickel plated. |
Product at a glance

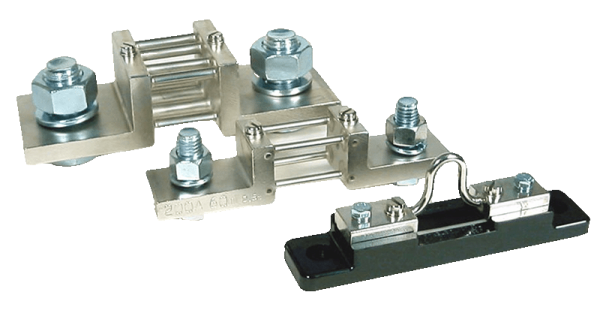

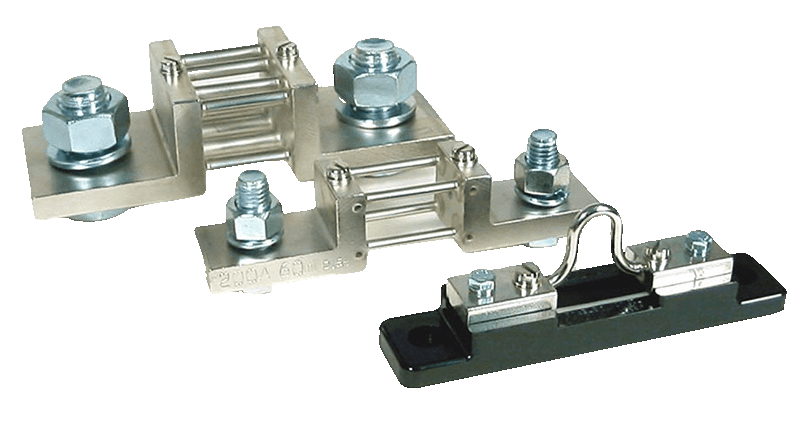

Shunts are used in DC systems to measure currents for indicating in panel instruments or as inputs to transducers. Shunts are available both with and without sockets.Application
- Shunts are an important link in the DC measurement system together with panel instruments and transducers.
- Panels for electrical systems, power industries.
- All different type of control panels in industry, institutions etc.
Benefits
- Easy to connect.
- Covers a wide range of DC currents.
Features
- Available with socket for 5 A, 10 A, 20 A and 25 A.
- Available without socket from 30 A up to 15 kA.
- Voltage drop is 60 mv as standard, 75, 100, 120, 150 and 300 mV as options.
- Resistance rods are nickel-plated manganin on bars of copper with powerful terminals.
