Product at a glance

Compact, accurate and reliable

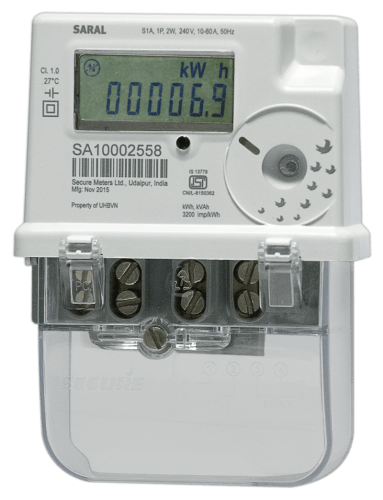

Saral is compact single phase direct connected intelligent credit' meter for domestic, small commercial metering applications including net metering. Its enhanced revenue protection features coupled with inter-operable communication protocol makes it an ideal choice for distribution companies. The meter offers an accurate and reliable metering solution for measurement of electrical energy in a single phase 2-wire network and ensures revenue assurance.

Benefits

  • Advanced anti tamper capabilities–prevention, detection and deterrence
  • Quality of supply information
  • Peak and off-peak tariff management
  • Stringent ingress protection/outdoor
  • Low cost of ownership

Features

  • Meter reading in absence of mains
  • Integrated base and cover
  • Current and temperature profile to help analyse loose connections, attempts to burn
  • Walkby meter reading over BLE (optional)
  • Smallest footprint in its class
  • Compact and light weight
  • User friendly display
  • Intuitive display actuator without an opening

Specification

Electrical
Connection type Direct connected
Wiring configuration /td> Single phase, two wire<
Voltage range 230/240 V (L-N)
Current range 5-30A, 10-60A, 10-100A
Accuracy Class 1.0
Mains frequency 50 / 60 Hz
Burden
Voltage circuit 0.5W and 1 VA
Current circuit 0.1 VA
Compliance
Standards IS 13779, IEC 62052-11, IEC 62053-21, IS 15959
Meter constant 6400 imp/kWh, 3200 imp/kWh, 1280 imp/kWh
Mechanical
Dimensions (W x H x D) 95 x 130 x 60mm (approx.)
Weight 0.3 kg (approx.)
Enclosure Engineering plastic
Environmental
Ingress protection IP 54
Surge withstand 10 kV
Humidity 95% non-condensing
Temperature -20 °C to +60 °C (operating), -25 °C to +70 °C (storage)

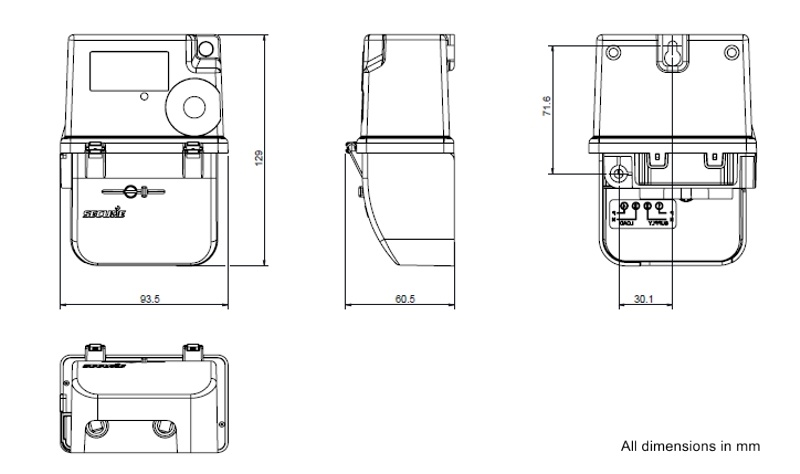

Drawings

For more details click here.
