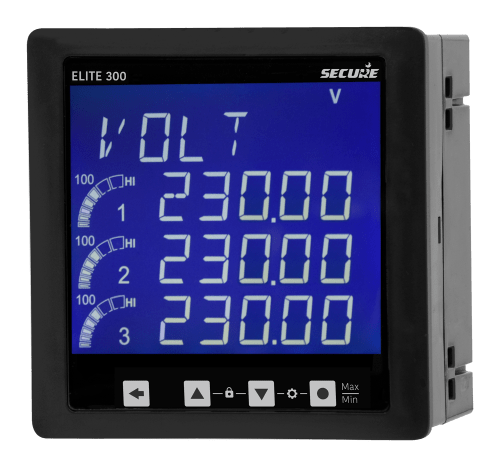

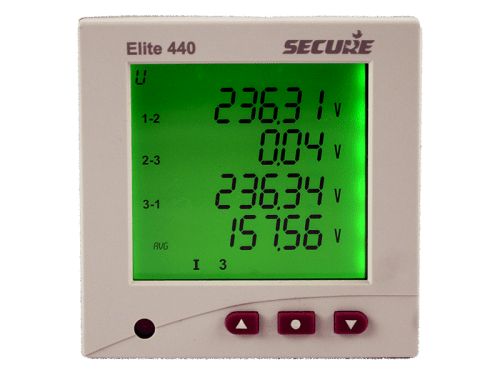

Specification
| Electrical | |
| Connection type | Common product for 1P2W / 3P3W / 3P4W applications |
| Voltage | |
| Measuring voltage range | 20 V to 500 V |
| Nominal voltage range (U,) | 57.5 V to 240 V (phase to neutral).100 V to 415 V (phase to phase) |
| Over voltage | 150% of U„ continuous |
| Current | |
| Measuring current range | 50 mA to 6A |
| Nominal current range (I,) | 1 A or 5 A |
| Overload | 150% of I, continuous |
| Frequency range | 45 to 65 Hz |
| Power factor | 01 lag – Unity – 0.1 lead (for I, and U,) |
| Auxiliary power supply range | 40 to 300 V AC / DC |
| Short- time over current | 120 A for 1 sec |
| Temperature coefficient | Voltage, current: 0.05% / °C |
| Mechanical | |
| Bezel size | 96 x 96 x 55 mm (70.8 mm with parking terminals) |
| Panel cut-out | 92 x 92 mm |
| Tolerance | +0.5mm |
| Weight | Approx 320 grams |
| Enclosure | Flame Retardant Polycarbonate (as per UL 94 VO) |
| Terminals | |
| Voltage/auxiliary | Combicon connectors: up to 2.5 mm’ cable |
| Current | Pass-through CT connection: up to 4 mm’ cable |
| Parking terminal for CT terminations (optional) | U-type / ring-type terminations: maximum up to 2.5 mm’ cable Combicon connectors: up to 2.5 mm’ cable |
| Digital output / RS.-485 / alarm output | 9Combicon connectors: up to 2.5 mm2 cable |
| Display | |
| Number of lines | 4 lines |
| Number of digits | 7 digits for energy parameters, 5 digits for instantaneous parameters |
| Energy resolution | Up to 0.01 resolution |
