Product at a glance

Modular two way communicate and optional load control

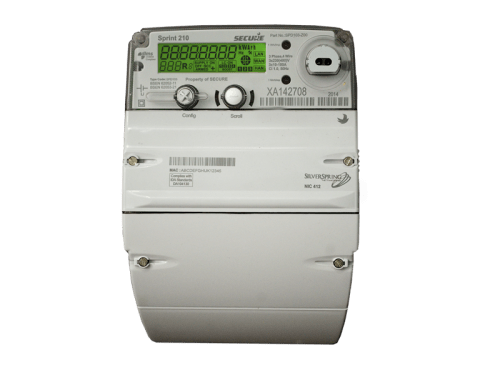

Sprint 210 three-phase meter provides flexibility through a modular design that readily accommodates the latest communications technologies utilising DLMS open protocol. The communications module can be factory installed, or fitted (or replaced) in the field. This enhances flexibility by enabling the use of ‘best of breed’ technologies, thereby future-proofing the utility’s investment. Sprint 210 paves the way for easy and convenient data transfer from the meter to the utility’s back office and is the perfect solution for AMI applications. Provision for a range of communications technologies, including mesh radio, GPRS/3G devices and others, ensures that Sprint 210 will meet your current and future needs.

Application

  • Domestic three-phase metering
  • Small commercial premises
  • Advanced metering infrastructure (AMI) and AMI-ready
  • Co-generation metering

Benefits

  • Easy integration with AMI system through modular communications
  • Front-mounted communications module for easy fitment and replacement in the field
  • Helps consumers to reduce energy usage, through detailed and timely information
  • Enhanced operational flexibility and simplified inventory management through pre-loaded configurations

Features

  • Four-quadrant metering with import/export registration
  • Integrated mains supply contactor (AMI-ready) and auxiliary load terminals (build options)
  • Remote and local de-energisation and energisation
  • Support for AMI features: TOU-based switching, boost and supply capacity control (variant specific)
  • Remote firmware upgrades
  • Large capacity power supply to support high communications demands
  • Communications 'front belly' module, supporting a range of devices
  • Enhanced profile storage, with primary load profile for energy data and secondary profile for supply quality
  • Logging and remote notification (alarm) of events
  • Quality of supply (QoS) monitoring
  • Provision for tamper detection
  • DLMS/COSEM open protocol compliant
  • Meets the minimum services specifications (Australian National Electricity Rules)

Specification

Electrical
Connection type 3 phase, 4 wire, direct connected
Rated voltage 230 V AC, -20% tp +15%
Maximum voltage 460 V (L-N)
Impulse withstand 10 kV, 0.5J (as per IEC)
12 kV, 9J (as per NMI M6)
Frequency 50 Hz ± 5%
Current range 10 A Lb, 100A Imax
Accuracy Class 1.0 (active energy), class 2.0(reactive energy)
Compliance
Standards* AS 62052.11, AS 62052.21, AS 62053.21, AS 62053.23, NMI M6-1 IEC 62052.11, IEC 62052.21, IEC 62053.21, IEC 62053.23, IEC62056 series (DLMS/COSEM)
Exceeds minimum services specification, as per the Australian National Electricity Amendment (expanding competition in metering and related services)
Mechanical
Dimensions (WxHxD) 180 mm x 221 mm x 118 mm (standard terminal block cover)
180 mm x 252 mm x 118 mm (extended terminal block cover)
Enclosure material Flame-retardant polycarbonate
Sealing Terminal cover, meter main cover, config button, communications module
Weight 2.4 kg (approx.)
Display 8-character alphanumeric LCD with backlight and icons for status
Environmental
Temperature Operating: -10°C to +60°C | Storage: -25°C to +70°C
Humidity 95%, non-condensing
Ingress protection IP 53
Insulation class Protective class II
