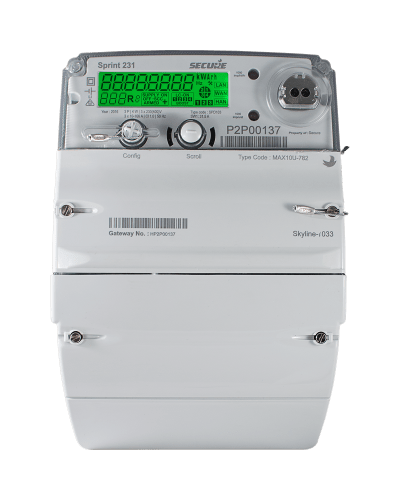

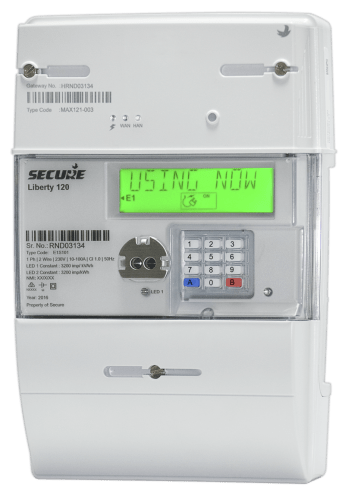

Specification
Electrical | |
Connection type | 1-phase, 2-wire, active-neutral, direct connected |
Measuring elements | 1 element |
Rated voltage | 230V , -20% to +15% |
Maximum voltage | 460V (L-N) continuous |
Impulse withstand | 12 kV, 9 J, as per NMI M6 |
Current range | 10-100A |
Frequency | 50 Hz ±5% |
Accuracy | Class 1.0 (active energy), class 2.0 (reactive energy) |
Metrology lamp | Two metrological LEDs for active and reactive energy |
Compliance | |
Standards | NMI M6-1, AS 62052.11, AS 62053.21, AS 62053.23 Exceeds minimum services specification as per the National Electricity Amendment (expanding competition in metering and related services. Rule 2015 No. 12) |
Data storage capacity | |
Energy/demand load profile | 395 days (per channel) at 30-minute interval (configurable), up to 4 channels, 65 days (per channel) at 5-minute interval (configurable), up to 4 channels |
Quality of supply (QoS) parameters | 90 days (per parameter) at 30-minute interval (configurable), up to 8 parameters, including average voltage, current, phase angle, temperature |
Switches/outputs | |
Mains supply contactor | 100 A |
Mechanical | |
Dimensions | (W x H x D) 146 mm x 211 mm x 65 mm |
Enclosure material | Flame-retardant polycarbonate |
Weight | 0.9 kg (approx.) |
Sealing provisions | Terminal cover, meter main cover, communications module |
Display | 10-character alphanumeric starburst display with backlight and icons for status |
Keypad | 12-key (0-9, A, B) for local entry of PAYG code and access to displays |
