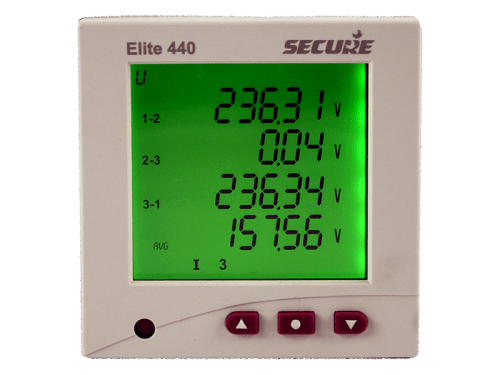

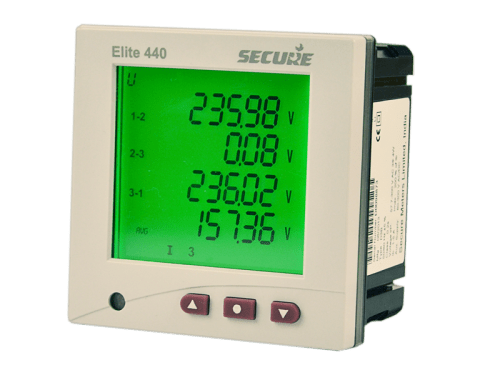

Elite 440

Product at a glance

MFM with high accuracy, configurability and easy integration

Elite 440 is a multi-line, three-phase digital panel meter for accurate and reliable measurement of electrical parameters (voltage, current, power, frequency, etc.). It is used for both industrial and commercial applications and features a large multi-line backlit LCD display that displays four parameters simultaneously. Modbus communication capability allows easy integration with energy monitoring systems. Expansion modules can be fitted for enhanced system integration (pulse inputs / outputs or analogue outputs and ethernet).
Get in touch

Application

  • Commercial and industrial sub-metering and energy management system (EMS) applications
  • Building management and monitoring systems (BMS)
  • High, medium and low-voltage switchgear panels
  • Control and relay panels
  • Power Control Centre (PCC) panels
  • Motor Control Centre (MCC) panels
  • Relaying and control outputs
  • Plant automation and monitoring system (SCADA / DAS)

Benefits

  • Easy interface with external devices through built-in Modbus (RS-485 / Ethernet)
  • Detachable connectors for easy installation
  • Diagnostics assistance on display
  • Suitable for star or delta connections and low or high-voltage applications
  • Cost-effective online monitoring
  • Field-configurable CT / PT primary and secondary values using push buttons

Features

  • Large four-line seven-digit display (9.7 H x 5 W mm) with quadrant identification section and bar graph for instantaneous power-level indication
  • High accuracy: Class 0.2s, 0.5s, 1.0
  • Average THD measurement for voltage, current and power, up to 31st harmonic
  • Measurement selection (star or delta / 3P 4W or 3P 3W)
  • Modbus communication via RS-485 port / ethernet
  • True root-mean squared (RMS) metering
  • Calibration LED for accuracy test on site
  • Wide and configurable current range (1-2A and 5-10A)
  • Wide-range of auxiliary power supply, suitable for high-voltage or low-voltage installations
  • Maximum demand recording
  • Midnight snapshot (values) for selected energy registers
  • Scroll-lock and 'Favourites Page' display support
  • Expansion capability via add on modules for analogue outputs or pulse inputs / outputs and ethernet
  • Password protection for setup mode
  • Ethernet gateway module for easy integration of multiple meters connected over RS485 network

Useful links

Specification

Electrical
Connection type Common product for HT3/HT4/LT4 applicatio
Measurement voltage range 57.7 V (100V) – 240 V (415 V) AC 3 phase 4 wire (3 phase 3 wire)
Tolerance -30% to +20% of V
Aux power supply range 80 – 300 V AC/DC or 24 – 60 V DC (variant)
Current range Available 1-2A and 5-10 A in single variant (field configurable)
Main frequency 50/60Hz with ±5%
Accuracy Class 0.2s, 0.5s, 1.0
Burden Aux burden: 3.5 VA; 8VA when all modules connected.
Current ckt burden: 1 A – 0.05VA per phase, 5 A – 0.25 VA per phase.
Voltage ckt burden: 0.15 VA per phase.
Short time over current 20 x Imax for 1 sec., 10 x Imax for 3 sec., 7 x Imax for 10 sec.
Compliance
Standards* IS13779, IS14697, IEC62052-11, IEC62053-21, IEC62053-23, IEC62053-22, IEC61010, IEC62053-31
Mechanical
Dimensions (WXHXD) 96 x 96 x 65 mm (w/o module); 96 x 96 x 110 mm (with module)
Cut out size 92 x 92 mm
Weight 0.5 kg (approx)
Enclosure FRPC
Terminals Combicon connector
Max conductor size 2.5 mm2
For more details click here.

Related products

Elite 500
Elite 100 and 300
