Product at a glance

High-precision, multiple communication, TFT display

The Elite 500 series includes devices with advanced power monitoring capabilities, which can be used for standalone device monitoring and power quality analysis as part of BMS, process industrial controls and SCADA systems. it also offer data logging, control IOs and modular communication with multiple protocols for third party system integration. Based on the application, Elite 500 allows customers to select conventional type CT or Rogowski coil input, which can be directly connected to the meter without the need for any additional integrator.

Application

  • Energy transfer measurement and reconciliation
  • Power plants, feeder monitoring, grid substations, wind turbines, renewables, industrial and commercial premises
  • Online monitoring of energy exchange at various interface points
  • Automation and system integration
  • Process and factory automation

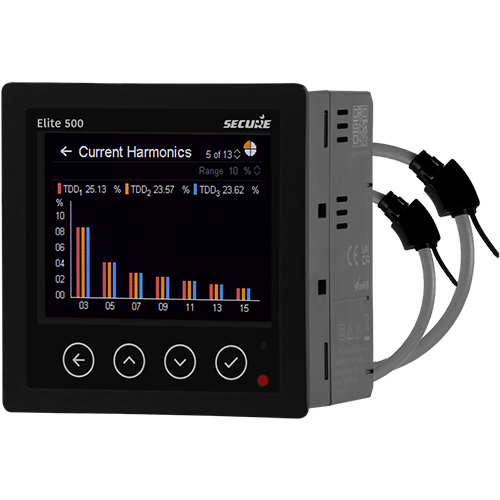

  • Retrofit application up to 4000A can be served by using Rogowski coil
  • Different field add on modules supporting different application i.e. Modbus / BACnet / Profinet / IEC 61850 protocol support, Analogue output and control IOs
  • Oil and gas / Mining / Hospitals / Malls / Datacentres
  • LV / MV / HV Switchgear

Benefits

  • Minimal integration cost through hot pluggable modular options for multiple communication ports
  • Support of multiple industry standard protocols: MODBUS RTU / TCP, Profinet, BACnet and IEC 61850 for integrationwith SCADA and other automation systems
  • Field replaceable hot pluggable communication, PIPO,alarm and analogue output modules
  • Supports measurements for Energy Efficiency / LEED certification
  • Large, high-resolution graphical colour display for analytical and graphical views
  • Options to have conventional CT or Rogowski coil

Features

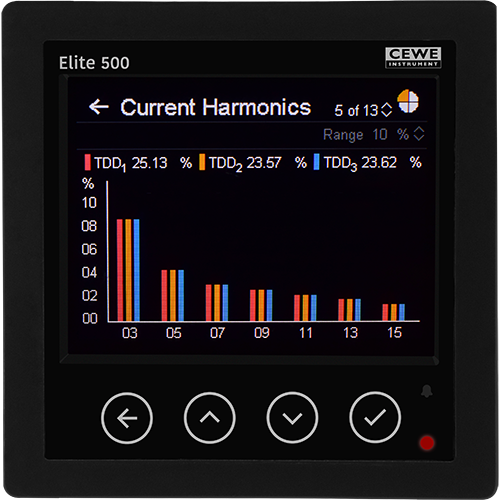

  • TFT Colour display showing vector diagram, bar chart, weekly /monthly energy consumption comparison
  • 17 energy measurements support including net and absolute energy parameters
  • Energy resolution: 7+3 digit, Instantaneous parameters: 4+3 digit, High resolution page for energy measurement
  • Class 0.2S / 0.5S accuracy for energy measurement
  • Configurable favourite parameter on the display page
  • Time synchronisation options through SNTP
  • Power quality features including individual harmonics,THD, sag, swell, voltage unbalance and interruption counter
  • Total demand distortion (TDD) factors and waveform quality indices like K factor and crest factor
  • Positive, negative and zero sequence components
  • Flexible time-of-day tariff, maximum demand / demand support, DST (daylight saving time)
  • Supports PIPO / DIDO, alarm and analogue output module
  • Alerts and events on configured parameters
  • Dual loggers for instantaneous and energy parameters
  • Dual socket support on Ethernet TCP IP module allows for simultaneous communication over Modbus.
  • Supports RS485 Modbus along with any chosen Ethernet protocol

Specification

Conventional Rogowski
Electrical
Connection type Common product for 1P2W / 3P3W / 3P4W applications
Measurement voltage range 35 V to 500 V (L-L) max, 20 V to 300 V (L-N) max
Measurement current range 10mA – 6 A (configurable) 5% Ipr -Ipr (Ipr -1000 A or 4000 A)
Starting current range 1mA 1 A for 1000 A / 4 A for 4000 A
Frequency 50 / 60 Hz
Burden Current circuit: < 0.2 VA/phase @ 1A & @ 5A Voltage circuit: < 0.2 VA/phase
Sampling rate 156 samples / cycle / channel
Accuracy
Energy Class 0.2S / class 0.5S Class 0.5S
Voltage, Current, Power 0.2% for measurement range
Frequency ±0.05 Hz
Power factor ±0.005 (0.5 lag to 0.5 lead)
Maximum withstand Voltage 2 times of nominal voltage value for 1 Sec repeated 10 times at 10 second interval
Maximum withstand current 1.2 times of Ib continuously
Short time over current 20 times Imax for 1 second, 10 x Imax for 3 sec., 7 x Imax for 10 sec.
Overload (continuous) 1.5 times of Ib (Up to 7.5A)
(only measurement)
Standard IEC 62052-11, IEC 62053-22, IEC 62053-24, IEC61557-12, IEC 62053-31,
IEC 60529, IEC 61010-1, IEC 61010-2-030, IEC 61326-1, IS14697, CE, UKCA
IEC 61850-6, 7-1, 7-2, 7-3, 7-4, 8-1, (as per edition 1 and 2)
Environmental
Ingress protection IP 54 (front fascia); IP20 (at terminals), IP 65 with gasket (Optional)
Insulation 3.5 kV RMS 50 Hz, 1 minute
Impulse withstand 6.4 kV
Operating temperature -10°C to + 60°C
Storage temperature -25°C to + 70°C
Temperature coefficient 0.1% / °C
Mechanical dimension 96 x 96 x 57.6 mm (± 0.5 mm) (H x W x D)
Weight 365 g
Software – Two data loggers:
Primary data logger
Logging of up to 20 energy channels values, with integration
period 5, 15, 30 & 60 minutes
~15000 parameter-days capacity at 30-minute interval
Secondary data logger
Logging of up to 20 instantaneous values with integration period
1, 2, 5, 10, 15 & 30 minutes
~35000 parameter-days capacity at 30-minute interval
– Configurable parameters:

  • 8 time-of-use tariffs (TOU), 8 Seasons, 8 day types, DST dates, 6 billing history
  • Logging daily energy snapshots values up to 90 days
  • Alarms and event logging

Up to 31st individual harmonic component measurement
UP to 63rd total harmonic distortion (THD) measurement
K-factor, Crest Factor, TDD, sequence components
Power quality features including voltage sag, swell

Features
Power supply Range: 48-300VDC or 85-300VAC
Burden Base product: <3W, < 6.5VA at 240V AC. With all modules: <6.5W, <16VA
Display TFT for graphical and analytics (3.5 inch)
Size: 53 x 70 mm (H x W), 320×240 pixels. Pixel size: 0.22 mm²
Battery Battery for RTC backup
Inputs and Outputs 1 relay output, 1 fixed pulse output, 2 configurable pulse inputs / outputs

  • Pulse outputs:
    Type: volt-free, 100 mA, voltage: 48-240 V AC / DC,
    Option for 24-40 V DC, pulse width: 20 – 300 ms (for 50Hz); 16 – 300 ms (for 60Hz)
  • Configurable as pulse input / output:
    Pulse output type: volt-free, 100mA pulse
    input type: Optical isolator, Voltage: 24-240 V AC / DC
  • Relay output: Type: volt-free, 2A
  • Analogue output (self-powered) 4 configurable AO 0-20mA, 4-20mA
  • Indicator 2 LEDs: 1 for metrology (red), 1 for alarms / events (amber)
Communication
RS485 port Protocol: Modbus RTU
Baud rate: 1200 – 38400 bps, parity- none, even, odd
Ethernet port Ethernet over RJ-45, 10 / 100 Mbit / s, SNTP time sync
Optional Modbus TCP / IP, Modbus Gateway, BACnet IP, ProfiNET, IEC61850
Software support Configview (for configuration / reading), Optional eWatch 100 / eWatch Online
