eWatch ss ABT

Product at a glance

Timely and accurate system for bulk power monitoring

eWatch ss is an online monitoring system designed specifically to assist entities wishing to contribute to grid discipline. Monitoring of boundary point scans from a central location with respect to charges for energy, demand and unscheduled interchanges (UI) under the Deviation Settlement Mechanism (DSM) as per ABT (Availability Based Tariff) in India while managing the impact of revenue from the sale or purchase of power under changing grid conditions. Online monitoring of substations and data centres are possible without using ABT features. eWatch ss provides all the information that an entity needs to manage the requirements of its DSM system and help reduce UI deviations. It has powerful contract management features for handling the agreements between different entities, as well as schedule management, a configurable UI rules engine, UI prediction, virtual group management, system-generated alarms, configurable dashboards and reports to help the user make effective decisions. It is designed to deliver reliability, robustness and scalability.
eWatch ss ABT
Get in touch

Application

  • State and central transmission companies
  • Central and state generating stations
  • Independent power producers (IPP) and captive power plant (CPP)
  • Open access (OA) entities
  • Renewable generators, such as wind and solar
  • Distribution companies
  • Railways

Benefits

  • Enable participants to avoid deviation penalties
  • Local sub-station and central control centre on line monitoring through dashboards and MIMIC diagrams
  • Facilitate to verify deviation bill charges
  • Support to update UI rules ŸIntegrates main, check and standby meters
  • Assist in integrating with energy audit and billing systems
  • Capacity to handle large deployments with faster refresh rates, using Data Concentrator Unit (DCU)
  • Provide integration facility through OPC

Features

  • Modbus, DLMS-ICS protocol support
  • Solution with TCP/IP and/or RS-485 network
  • Communication agnostic – MPLS, OFC, VPN and 3G/4G etc.
  • Facility for reading missing data
  • Contract management (short, medium and long term)
  • Schedule management (multiple entity and multiple stages)
  • User configurable virtual groups and business rules/ABT tariffs
  • Configure alarms, alerts over SMS or email
  • System diagnostic and monitoring dashboard, MIMICs/single line diagrams
  • Time synchronization

Useful links

Specification

Packages Professional Professional ABT Enterprise Enterprise ABT
No. of max. meter supported Up to 100 Up to 100 Up to 15,000 Up to 15,000
No. of concurrent users Up to 20 Up to 20 Up to 50 Up to 50
Local and central deployment
Online monitoring
Basic features (alarms, dashboard,virtual, group, SLD, mimic, reports)
Refreshrate* 5 sec/1.15 min 5 sec/1.15 min 1.15 min** 1.15 min**
Configurable tariff engine
ABT contract management
ABT schedule management
Selective updates of 30 min/hourly/daily are also possible to the central system from sub-stations / local centres, depending on communication network, cost of communication and business needs
** 1 min up to 500 numbers of meters only

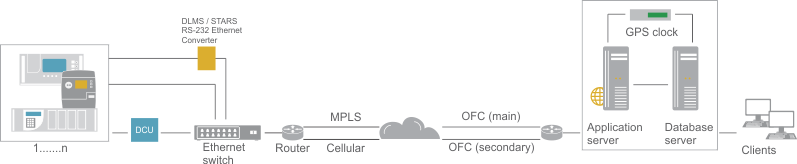

System architecture
