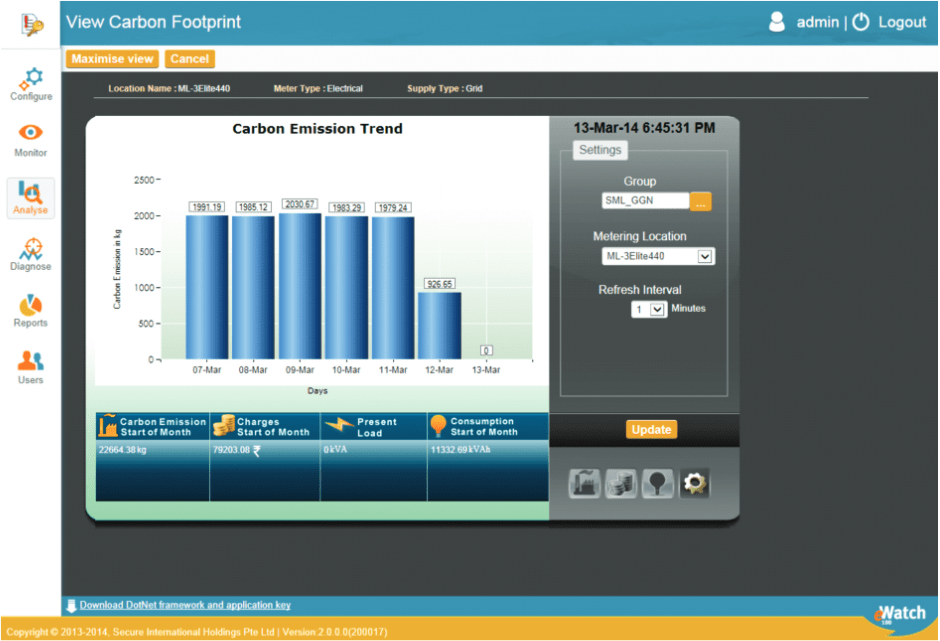

Carbon View
Product at a glance
Web-based Energy Management
eWatch 100 is a web-based state-of-the-art real-time data retrieval, monitoring & software for effective management of electrical systems by any electrical (electricity) and/or non-electrical (heat, water & gas) business user in an industry. The software communicates with MODBUS-supported energy meters to acquire online data to process and display the data in tabular, gauge, graphical or mimic views as per the user's choice. Its enriched alarm engine, dashboard & reporting tool facilities help the user to make decisions proactively, thus eliminating any harmful events in the electrical or non-electrical system. The system also supports billing analysis for main & auxiliary supplies. Further, the system helps users analyze carbon emissions based on energy consumption.Application
- Industrial and commercial sub-metering applications
- Building management and monitoring systems
- Entities engaged in energy certificates, carbon credit and ISO / Green building
- Generating power plants
- Open access industries
Benefits
- Online energy monitoring & cost analysis
- Enables entities to drive energy efficiency, reduce cost and carbon footprint

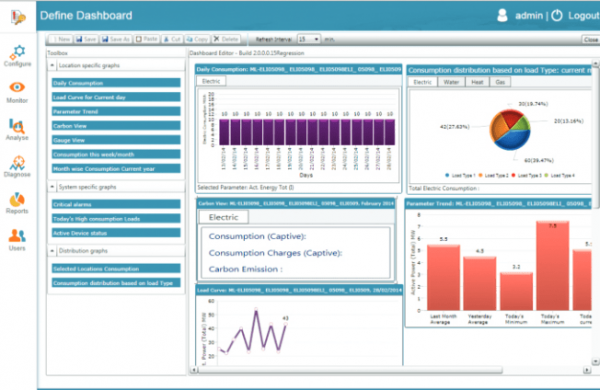

- User configurable dashboards using drag and drop wizard for multiple users
- OPC server to provide online data to external system / software
- Single system to support up to 1000 meters of multiple makes, including dual register meters
- Web-based software (works on Intranet)
- Easy implementation through client-server architecture
- Helps to monitor & compare trends in different locations
- Helps to set targets against which consumers can monitor utility use
- Configurable alarms for instantaneous parameters with high and low threshold limits
- Single point acquisition for multi-fuel data (Electricity, heat, water and gas)
- Easy installation
Features
- Online data acquisition over RS 485 MODBUS & TCP/IP
- Multiple online viewing options such as tabular, configurable gauge and graphical dashboards & mimic
- Flexibility to define dynamic tariff structure to analyze energy cost
- Carbon emission analysis based on type of energy consumption
- Flexible reporting options for energy consumption, demand report, virtual metering report, min-max parameter report and meter replacement report
- Automatic daily report generation and E-mail to assigned users for electrical meters
- Organized storage of the collected data for future use with auto & manual clean-up facility
- OPC (Server version Std. DA V2/V3) data communication support
- Supports multi-fuel monitoring for heat, water & gas meters through pulse output
- Facility to monitor & analyze multiple locations under single view using a virtual meter concept
- Active Mimics configurability with drill-down mimic feature
- Separate bill analysis for mains and auxiliary
- Shift wise production data entry to generate specific energy consumption report
- Automatic Bulk Metering information import through excel import
Useful links

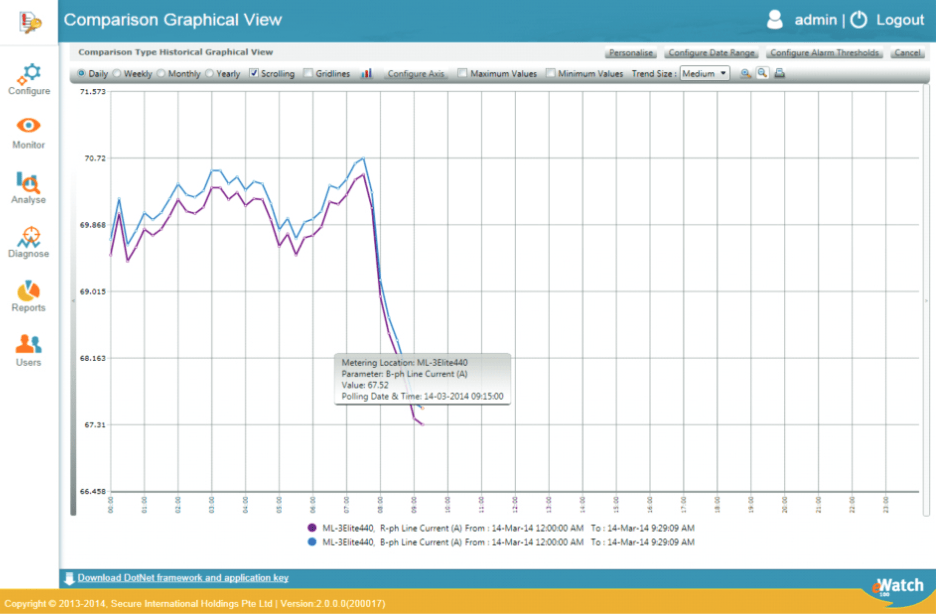

Graphical Views

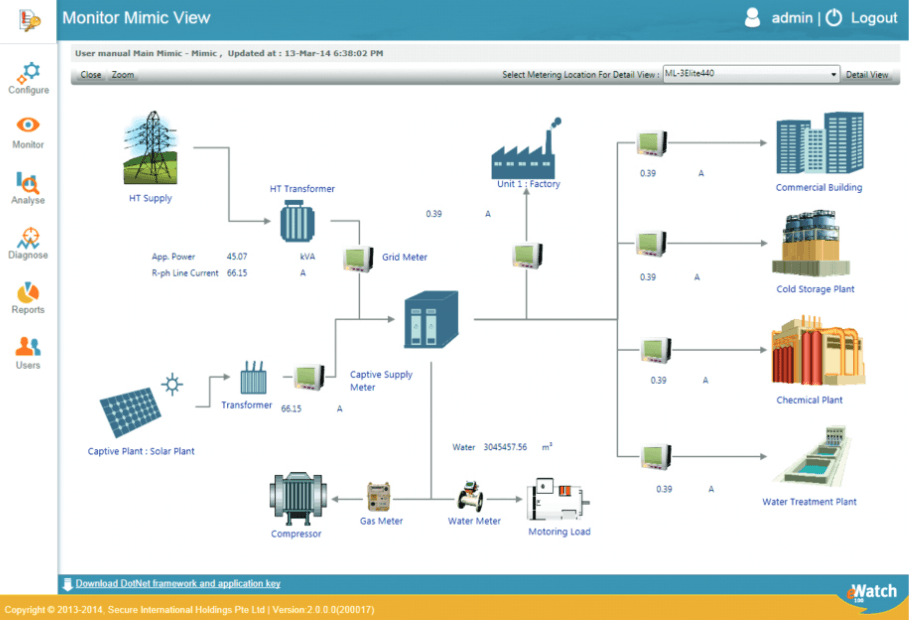

Mimic View

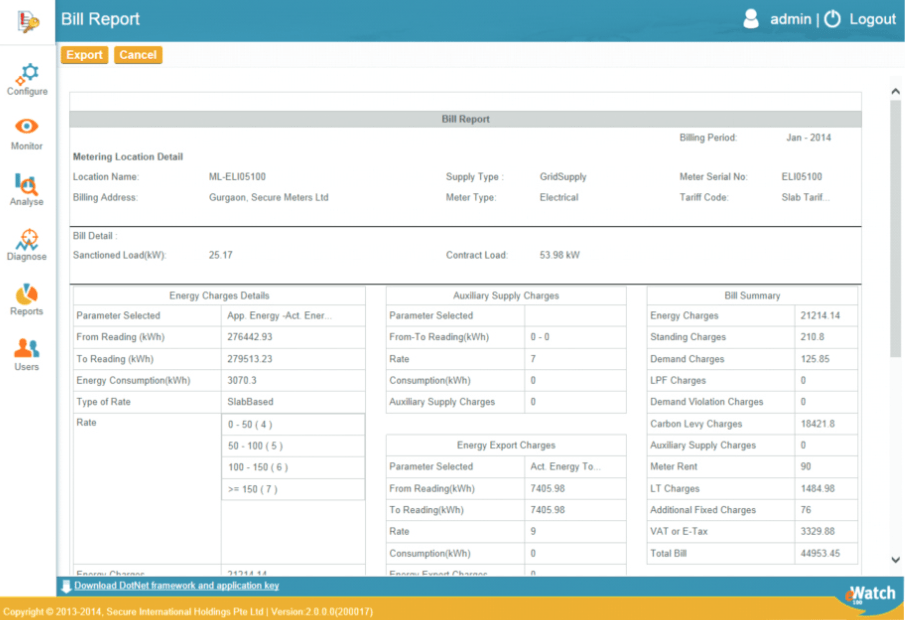

Energy Bill Report
