Liberty 112

Product at a glance

Smart, flexible and future proof

Secure Meters has developed the Liberty 112 single phase, single/twin element (configurable), five terminal smart electricity meter to meet UK smart metering requirements. Liberty 112 has five terminals suitable for use with installations with switched heating load operating on economy 7/10 installations.

The product offers unique flexibility such that single product can replace any type of legacy common switched restricted heating installations, avoiding the need to carry different installation specific products.

Liberty 112 supports all common switched restricted heating market tariffs, hence single meter can replace multi meter legacy installations. Product enables options for retailer to optimize wholesale cost and hence provide consumer with cheaper heating tariffs.

Get in touch

Application

  • Smart electricity single/twin element, five terminal meter for use in installation with switched heating loads
  • Smart replacement to tele-switched restricted heating meters.
  • Dual fuel (electricity+gas) and single fuel (electricity only) domestic customers in both credit and PAYG modes
  • Metering for small commercial premises including credit and PAYG modes
  • Can support single tariff for all electricity load or separate tariffs for general and heating electricity (configurable)

Features

  • Meets requirements of SMETS1
  • Four-quadrant measurement with import/export registration (on primary element)
  • Single element and twin element operation configurable
  • Time of use/complex tariffs and maximum demand
  • Remote operation of all auxiliary switches
  • Option to override tariff schedule for configured duration as per weather forecast and to consume excess renewable generation
  • Logging of multi par ameter load survey, billing data, events including power outage and abnormalities.
  • Integrated contractor for main and switched outputs.
  • GPRS communications.
  • Communication hub acts as coordinator for ZigBee HAN and mirror/proxy for gas meter data.
  • Credit and PAYG modes (meter maintains account and tariffs)
  • Keypad to enable local entry of PAYG UTRN token if WAN not available
  • Remote firmware upgrade

Useful links

Specification

Electrical
Connection type Direct connected
Wiring configuration Single phase, single or twin element, five terminal meter
Voltage range 230 Vac (nom)
Current range 0.5-10 (100) A
Accuracy Active Energy MID Class B, Reactive Energy Class 2.0
Burden Audible Alarm Compliant with EN 50470-1-3
Compliance
Standards MID Class B EN 50470-1,3; IEC62053-23
Mechanical
Modular design Field replaceable communication module
Dimensions (W x H x D) 140 x 175 x 90 mm
Terminals Tunnel type with 2 screws
Weight 1.2 kg (approx.)
Enclosure Flame retardant polycarbonate
Environmental
Ingress protection IP53
Insulation class Protective class II
Temperature -25ºC to +55ºC (operating), -25ºC to +70ºC (storage)
Humidity 95% non-condensing
For more details click here.

Related products

Liberty 116
Liberty 170 (dual-register)

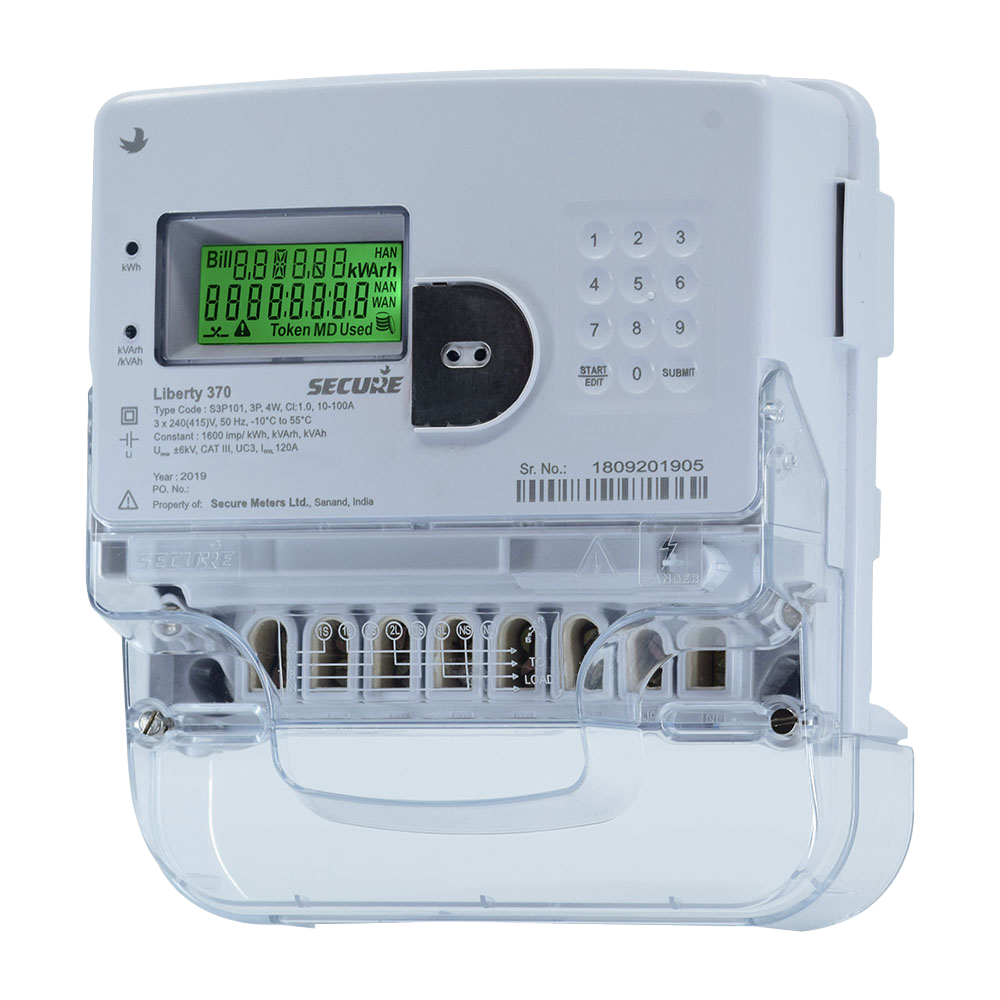

Liberty 370 (dual-register)
