Specification
| Electrical | |
| Connection type | Direct connected |
| Wiring configuration | 3-phase 4-wire |
| Voltage reference | 240/230 V (L-N) |
| Voltage variation | -40% to +30% |
| Current range | 10-100 A |
| Accuracy | Class 1.0 |
| Frequency | 50 Hz ±5% |
| Compliance | |
| Standards | IS 13779, IS 15884, IS 15959 |
| Mechanical | |
| Dimensions (W x H x D) | ~ 184 mm x 207 mm x 96 mm (with extended terminal cover) |

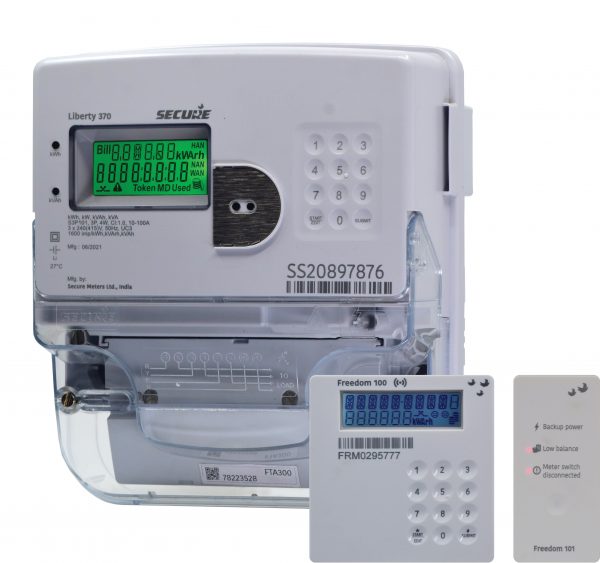

| Weight | ~ 1.5 kg, ~ 1.64 kg (with Freedom Terminal Adaptor) |
| Enclosure | Engineering plastic |
| Sealing | Sealed for life, additional sealing provision at meter cover and terminal cover |
| Environmental | |
| Ingress protection | IP 54 |
| Temperature | -10 °C to +60 °C (operating) -25 °C to +70 °C (storage) |
| Humidity | 95%, non-condensing |
| Features | |
| Tariff | Up to 8 rates (slab or time-of-use) * |
| Maximum demand register | Active and apparent energy for both Mains and DG * |
| Load survey | >250 parameter days with 30-minute integration period and 7 parameters |
| Energy supported | 13 energy parameters (factory configurable) * |
| Histories | 12 historical sets of values |
| Reading data | Details for all the energy charges for all 12 histories * Separate registers for mains and DG energy |
| Communications | Optical port for local communications, BLE comms enable remote access for – Data collection – Consumer mobile App – Consumer IHD |
