Elite 500

  • Best-in-class accuracy Best-in-class accuracy
  • Graphical display Graphical display
  • Supports Rogowski coil Supports Rogowski coil
  • Hot pluggable communication modules Hot pluggable communication modules

Product at a glance

High-precision, multiple communication, TFT display

The Elite 500 series is a set of devices with advanced power monitoring capabilities. It can be used for standalone device monitoring and power quality analysis as a part of the building management system (BMS). It can also process industrial controls and SCADA systems. It offers data logging, the ability to control IOs, and modular communication with multiple protocols for third party system integration. Elite 500 allows customers to select either a conventional type of CT or Rogowski coil input, depending on the application. These can be directly connected to the meter without the need for any additional integer.
Elite 500-Secure Meters

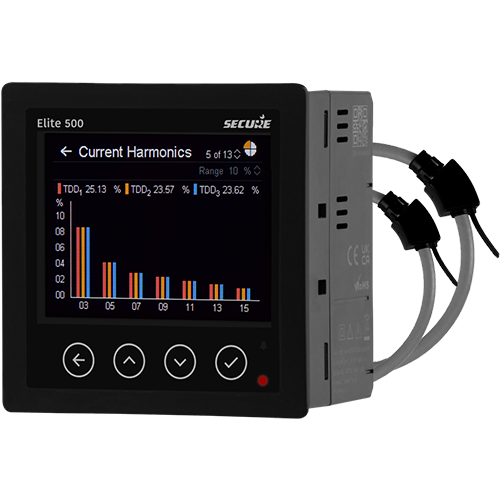

Elite 500
Get in touch

Application

  • Energy transfer measurement and reconciliation
  • Power plants, feeder monitoring, grid substations, wind turbines, renewables, industrial and commercial premises
  • Online monitoring of energy exchange at various interface points
  • Automation and system integration
  • Process and factory automation
  • Retrofit application up to 4000A can be served by using Rogowski coil
  • Different field add-on modules supporting different applications like Modbus, BACnet, Profinet, IEC 61850 protocol support, analogue output and control IOs
  • Various industries like oil and gas, mining, hospitals, malls, datacentres, etc.
  • LV, MV, and HV switchgear

Benefits

  • Minimal integration cost through hot-pluggable modular options for multiple communication ports
  • Support of multiple industry standard protocols: MODBUS RTU / TCP, Profinet, BACnet and IEC 61850 for integration with SCADA and other automation systems
  • Field-replaceable hot-pluggable communication, PIPO, alarm and analogue output modules
  • Supports energy efficiency measurement and LEED certification
  • Large, high-resolution, colour display for both analytical and graphical views
  • Options to have conventional CT or Rogowski coil

Features

  • TFT colour display showing vector diagram, bar chart, weekly /monthly energy consumption comparison
  • 17 energy parameter measurement support including net and absolute energy parameters
  • Energy resolution: 7+3-digit, instantaneous parameters: 4+3-digit, high-resolution page for energy measurement
  • Class 0.2S / 0.5S accuracy for energy measurement
  • Configurable favourite parameter on the display page
  • Time synchronisation options through SNTP
  • Power quality features including individual harmonics, THD, sag, swell, voltage unbalance and interruption counter
  • Total demand distortion (TDD) factors and waveform quality indices like K factor and crest factor
  • Positive, negative and zero sequence components
  • Flexible time-of-day tariff, maximum demand / demand support, DST (daylight saving time)
  • Supports PIPO / DIDO, alarm and analogue output module
  • Alerts and events on configured parameters
  • Dual loggers for instantaneous and energy parameters
  • Dual socket support on Ethernet TCP IP module allows for simultaneous communication over Modbus.
  • Supports RS485 Modbus along with any chosen ethernet protocol

Useful links

Specification

Conventional Rogowski
Electrical
Connection type LV 3P4W / HV 3P4W / 1CT 3PT / LV 3CT / HV 3P3W / 3CT 2PT / 2CT 2PT / 1P 2W
Measurement voltage range 35 V to 500 V (L-L) max, 20 V to 300 V (L-N) max
Measurement current range 10mA – 6 A (configurable) 5% Ipr -Ipr (Ipr -1000 A or 4000 A)
Starting current range 1mA 1 A for 1000 A / 4 A for 4000 A
Frequency 50 / 60 Hz
Burden Current circuit: < 0.2 VA/phase @ 1A & @ 5A
Voltage circuit: < 0.2 VA/phase
Sampling rate 156 samples / cycle / channel
Accuracy
Active energy Class 0.2S / class 0.5S Class 0.5S
Reactive energy Class 0.5S
Voltage, Current, Power 0.2% for measurement range
Frequency ±0.05 Hz
Power factor ±0.005 (0.5 lag to 0.5 lead)
Maximum withstand Voltage 2 times of nominal voltage value for 1 Sec repeated 10 times at 10 second interval
Maximum withstand current 1.2 times of Ib continuously –
Short time over current 20 times Imax for 1 second –
Overload (continuous) 1.5 times of Ib, Up to 7.5A (only measurement) –
Standards IEC 62052-11, IEC 62053-22, IEC 62053-24, IEC61557-12, IEC 62053-31,

IEC 60529, IEC 61010-1, IEC 61010-2-030, IEC 61326-1, IS14697, CE, UKCA
IEC 61850-6, 7-1, 7-2, 7-3, 7-4, 8-1, (as per edition 1 and 2)
Environmental
Ingress protection IP 54 (front fascia); IP20 (at terminals), IP 65 with gasket (Optional)
Insulation 3.5 kV RMS 50 Hz, 5 seconds
Impulse withstand 6.4 kV
Operating temperature -10°C to + 60°C
Storage temperature -25°C to + 70°C
Temperature coefficient 0.02% / °C 0.1% / °C
Mechanical dimension (H x W x D) 96 x 96 x 57.6 mm (± 0.5 mm), 96 x 96 x 111.5 mm (± 0.5 mm) with module
Weight 365 g 280 g
Software – Two data loggers (16 MB memory):
Primary data logger
Logging of up to 20 energy channels values, with integration
period 5, 15, 30 & 60 minutes
~12500 parameter-days capacity at 30-minute interval
Secondary data logger
Logging of up to 20 instantaneous values with integration period
1, 2, 5, 10, 15 & 30 minutes
~40000 parameter-days capacity at 30-minute interval
– Configurable parameters:
  • 8 time-of-use tariffs (TOU), 8 Seasons, 8 day types, DST dates, 6 billing history
  • Logging daily energy snapshots values up to 90 days
  • Alarms and event logging
  • Up to 31st individual harmonic component measurement
  • Up to 63rd total harmonic distortion (THD) measurement
  • K-factor, Crest Factor, TDD, sequence components
  • Power quality features including voltage sag, swell
Features
Power supply Range: 48-300VDC / 85-300VAC
Burden Base product: <3W, < 6.5VA at 240V AC. With all modules: <6.5W, <16VA
Display TFT for graphical and analytics (3.5 inch)
Size: 53 x 70 mm (H x W), 320×240 pixels. Pixel size: 0.22 mm²
Battery Battery for RTC backup
Connector Ring type for current terminal, combicon for

voltage, Aux and modbus RTU

 all are combicon
Inputs and Outputs 2 configurable pulse inputs / outputs, 1 fixed pulse output, 1 Alarm output
  • Pulse outputs:
            24-230V DC or 48-230 V AC @ 100mA
             Type: volt-free, pulse width: 20 – 300 ms (for 50Hz); 16 – 300 ms (for 60Hz)
  • Pulse Input: 24-60 V AC/DC @ 100mA
  • 3 Alarm output: Type: volt-free, 230 V AC/ 30V DC at 2 A
  • Analogue output (self-powered): 4 configurable AO, 0-20mA, 4-20mA
  • Indicator – 2 LEDs: one for metrology (red), one for alarms / events (amber)
Communication
RS485 port Protocol: Modbus RTU
Baud rate: 1200 – 38400 bps, parity- none, even, odd
Ethernet port Ethernet over RJ-45, 10 / 100 Mbit / s, SNTP time sync
Optional: Modbus TCP / IP, Modbus Gateway, BACnet IP, ProfiNET, IEC61850
Software support Configview (for configuration / reading), Optional eWatch 100 / eWatch Online
Time synchronization Through SNTP protocol /through pulse input
For more details click here.
