Product at a glance

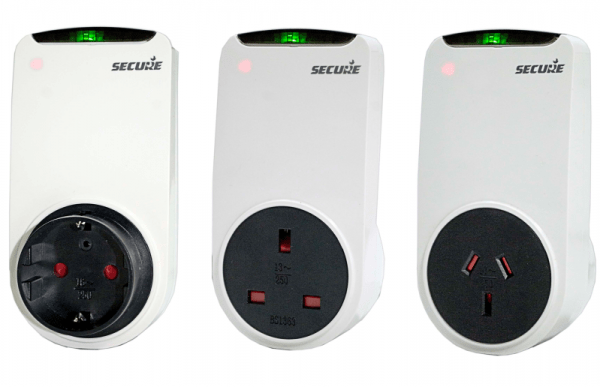

SSP301 enables appliances to be switched on or off locally or remotely, via a Z-Wave home automation system. It also acts as a Z-Wave repeater to extend wireless coverage, and eliminate 'dead spots', by retransmitting radio frequency signals, thereby improving communications reliability within the network. SSP301 can also report whether the connected appliance is switched on or off.

Application

Remote control of an appliance An electrical appliance can be controlled remotely by plugging it to an SSP301, which is in turn fitted to an electrical wall socket. The appliance can also be switched on or off locally, using a switch on the SSP301. Z-Wave network repeater SSP301 can be used to extend network range by plugging it into an electrical wall socket near the limit of Z-Wave coverage. The unit boosts the signal so that it can reach devices sited further away.

Features

  • Remote control of appliances
  • Remote reporting of switch state
    • Z-Wave Plus™ certified
  • Acts a Z-Wave repeater to extend range and signal coverage
  • Manual on/off operation

Specification

Electrical
Purpose of control Control of electrical appliances
Control type Micro-disconnection
Control action Type 1B
Software class Class A
Supply 230 V, 50 Hz
Burden
Current rating (load)
UK 13 (3) A
EU 16 (3) A
ANZ 10 (3) A
Radio
Mesh radio type Z-Wave
Operating frequency 868.42 MHz (UK/EU)

921.42 MHz (ANZ)

Receiver category Category 3
Class Class 3
RF range ≥100 m, line of sight
Mechanical
Case material Flame-retardant thermoplastic
Dimensions (W x H x D)
UK 60 mm x 61 mm x 119 mm
EU 60 mm x 95 mm x 119 mm
ANZ 60 mm x 69 mm x 119 mm
Weight (single unit packaging)
UK 0.25 kg (approx.)
EU 0.34 kg (approx.)
ANZ 0.24 kg (approx.)
Mounting
EU Type G
UK ‘Schuko’ Type E & Type F
ANZ Type I
Environmental
Enclosure protection IP30
Impulse voltage rating Cat II 2500 V
Ball pressure test temperature 75°C
Pollution degree Degree 2
Operating temperature range 0˚C to +40˚C
Storage temperature range -20°C to +55°C
Humidity (relative) 0% to 95%
Atmospheric pressure 980 hPA to 1035 hPa
