Liberty 116

  • Installation efficiency Installation efficiency
  • Remote firmware upgrade Remote firmware upgrade
  • Pay as you go (PAYG) Pay as you go (PAYG)

Product at a glance

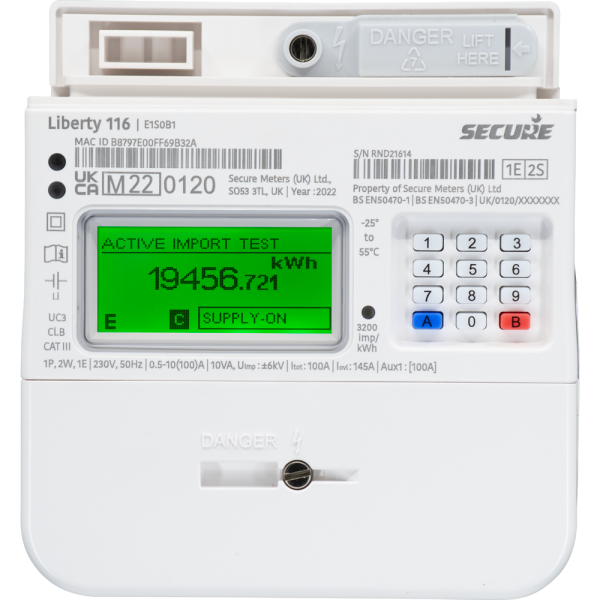

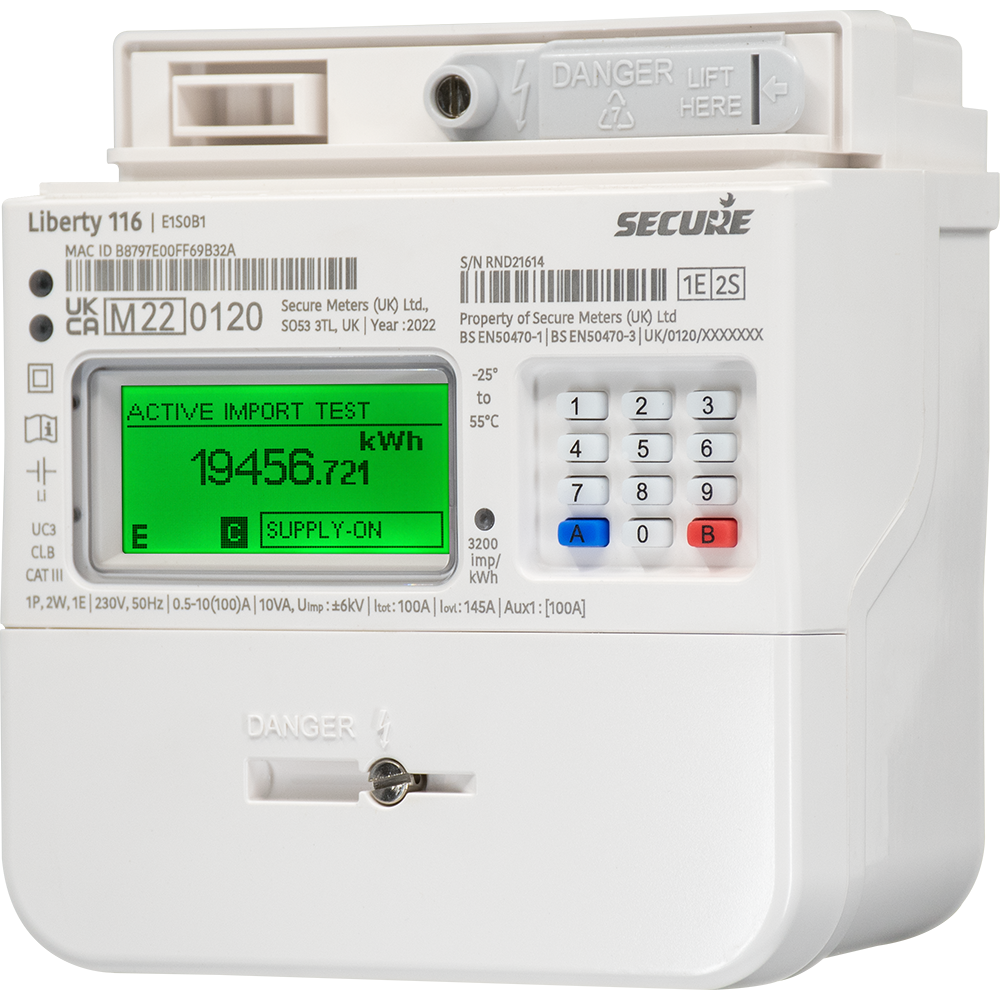

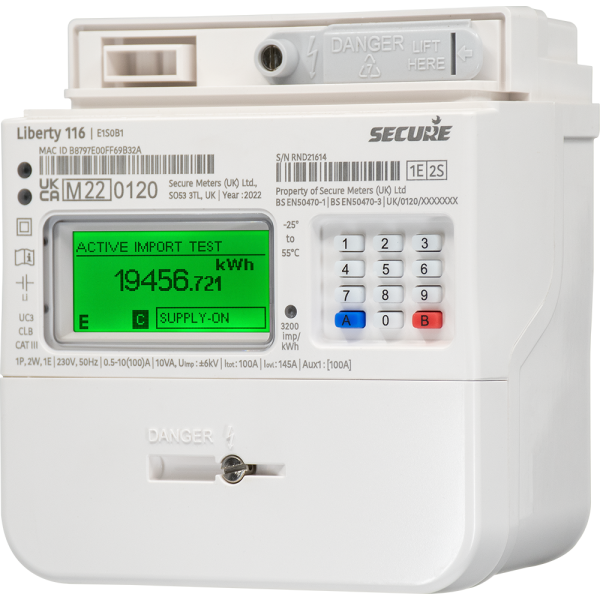

Liberty 116 is a single-phase, single-element SMETS2- compliant electricity meter that is specifically designed to Serve the UK government’s mandated smart meter rollout programme.


The five-term Liberty 116 smart electricity meter is suitable for use with installations that have switched heating appliances, such as storage heaters, underfloor heating and heat pumps, etc. The 5th terminal enables more advanced power scheduling compared to Economy 7/10 meters.

Get in touch

Application

  • Separate 100A auxiliary switch for controlling heat pump, domestic hot water and heating loads
  • Small-scale commercial and domestic metering
  • SMETS2 compliant electricity meter for use in credit and pay-as-you-go (PAYG) mode

Benefits

  • 15+ years product life
  • Quick installation along with auto-join feature
  • Supports mains and auxiliary switch remote connection / disconnection
  • Maintains user privacy by allowing only authorised access to meter data

Features

  • SMETS2 version 4.2, GBCS version 3.2, RED, MID Class B compliant
  • ICHIS-compliant meter
  • Supports comprehensive tariff: Time of use (TOU), Block and Hybrid
  • Keypad with 12 keys allows quick access to the necessary information on the display and local entry of UTRNs, if required, in the absence of PPMID and / or WAN.
  • Clear instructive display screens
  • COG LCD with multi-line display
  • Tamper detection for terminal, meter cover, hub removal and presence of magnet
  • Remote firmware upgrade facility

Useful links

Specifications

Electrical

Connection type

Direct connection

Wiring configuration

Single-phase, single-element, two-wire

Voltage and current range

Voltage 230 V AC (nom), current range 0.5-10(100) A

Accuracy

Active Energy MID Class B, Reactive energy class 2.0

Mains frequency

50 Hz ± 5%

Burden

Compliant with EN 50470-1, 3

Contactor

2 x 100A UC3
Compliance

Standards

MID Class B, EN 50470-1&3, BS7856, IEC62052-31, RED, DLMS, ZSEP 1.4, CPA
For more details click here.
