Product at a glance

Compact, configurable multiple measurand transducers

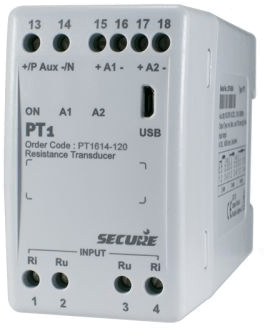

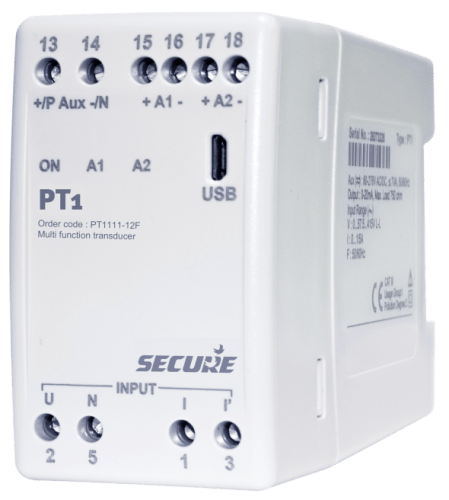

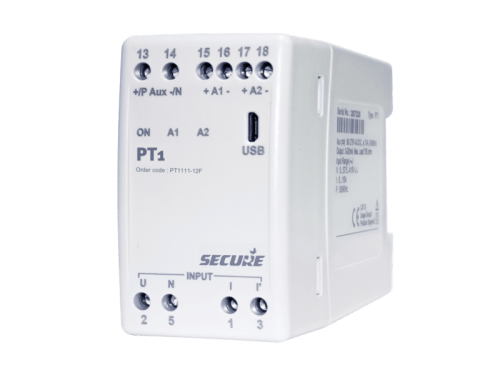

PT1 is a range of compact and configurable multiple-input transducers. It has been designed to meet the growing needs of supply utilities and industrial applications. It offers accurate true-RMS measurements and has a quick response time. It is equipped with two load-independent, galvanically-isolated analogue outputs that can be configured on site for different input parameters, input range and output curves.

Features

  • Best-in-class response time
  • Long range, site-configurable inputs, outputs and measurands
  • Load-independent accuracy on all outputs
  • 2-in-1 programmable transducers
  • Diagnostic LEDs
  • Compact footprint

Specification

Site-configurable measurement functions (measurands)
AC/DC voltage
Nominal input (Un) 57.7 V to 415 V
Measuring range 0 to 130% of Un (up to 500 V)
Measurement frequency 50/60 Hz ± 5%
Scale factor 0.8 to 1.3 x Un (up to 500 V)
Burden ≤0.2 VA
Maximum overload voltage 1.3 x Un continuously
2 x Un for 1 s, with up to 10 repetitions at 10 s intervals
AC current
Nominal input (In) 1 A to 5 A
Measuring current range 0 to 150% of In
Scale factor 0.6 to 1.5 x In
Burden ≤ 0.2 VA
Maximum overload current 2 x In continuously
20 x In for 1 s, with up to 10 repetitions at 100 s intervals
Frequency
Nominal input voltage (Un) 57.7 V to 415 V
Input range 0 to 130% of Un (up to 500 V)
Measurement range 45 Hz to 55 Hz, or 55 Hz to 65 Hz
Accuracy ±0.2 %
Active Power
Nominal input voltage (Un) 57.7 V to 415 V
Input voltage range 0 to 130% Un (up to 500 V)
Nominal input current (In) 1 A to 5 A
Input current range 0 to 150% of In
Measurement frequency 50/60 Hz ± 5%
Scale factor 0.5 to 1.5 of Un x In (at UPF)
For more details click here.
